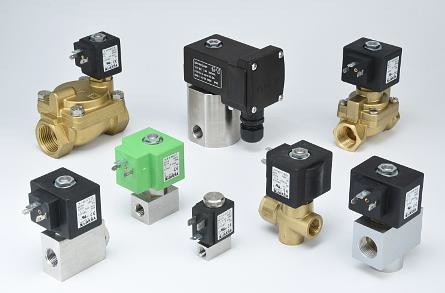

高壓用二口二位電磁閥
(2/2 SOLENOID VALVES FOR HIGH PRESSURE SERVICE)
耐高壓 Max 1000 bar
| 規格描述 | |
| 本體材質 (Valve Body) | 黃銅或不鏽鋼 (AISI 303) |
| 內部零件(Internal parts) | 不鏽鋼 (AISI 303, AISI 430F) |
| 襯墊(Seal) | PA(polyamide), PTFE, PU(Polyurethane), PEEK |
| 流體溫度(Fluid temperature) | -10℃ ~ +100℃(PTFE) -10℃ ~ +90℃(PA)/10℃ ~ +70℃(PU) |
| 環境溫度(Ambient temperature) | Max +55℃ |
| 黏滯性(Viscosity) | Max 21 mm2/s |
| 應答時間(Response time) | opening 0.1-1 s/closing 0.5-5 s |
| 使用電壓(voltages) | 230, 115, 48, 24 V 50/60 HZ 24,12 V DC |
| Duty cycle | Continuous (ED100%) |
| 動作頻率(Cycling rate) | 10-100 cpm |
| 電氣保護(Electrical protection) | IP65 (with plug to ISO4400) |
